1-1825027-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1-1825027-1
Datasheet:
Description:

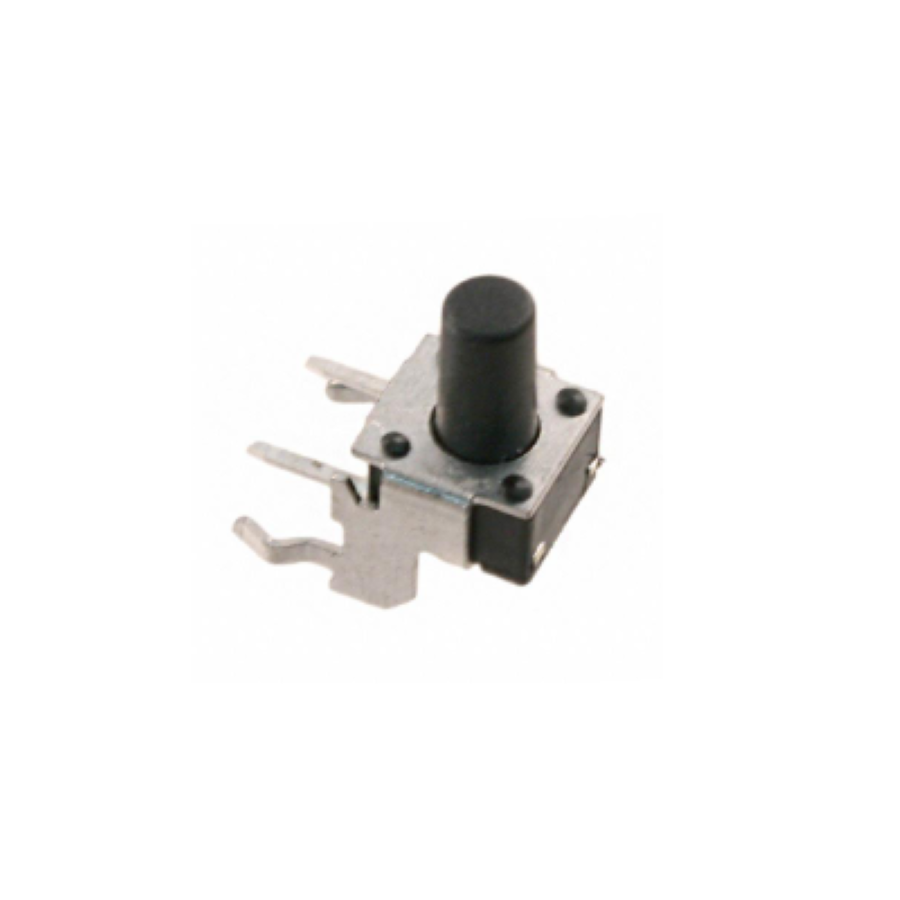

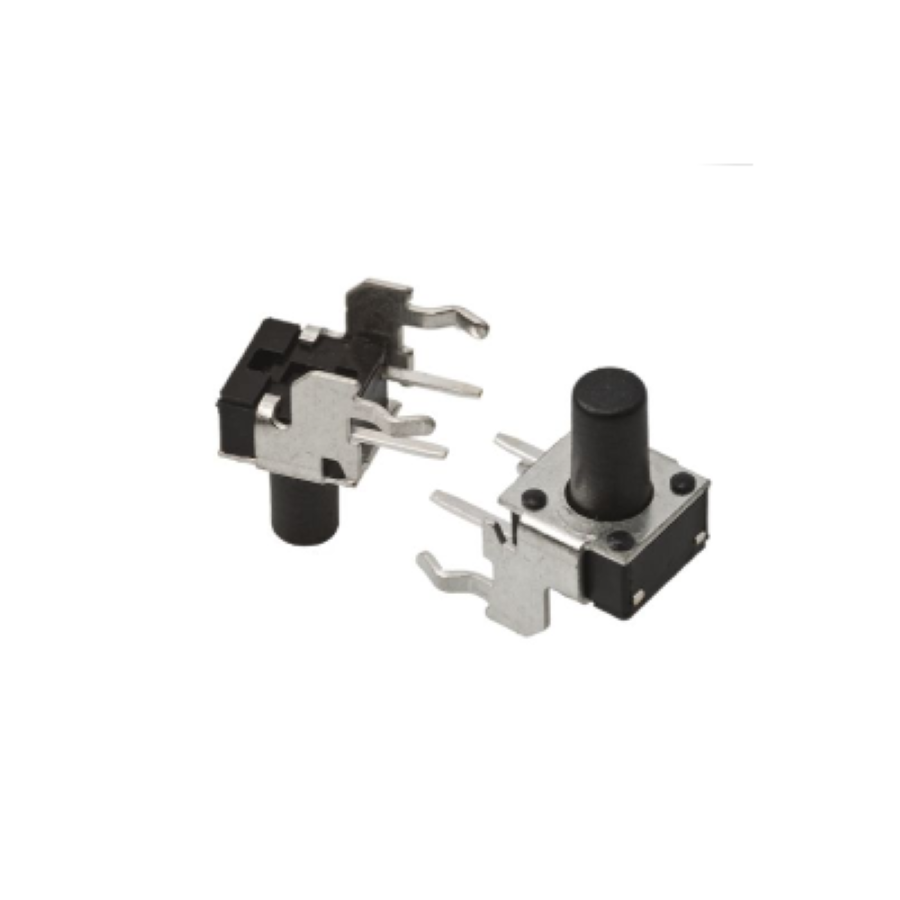

Tactile Switches Through Hole SPST-NO Off-Mom 1.6 N Right Angle
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 7.11 mm |
| Width | 6 mm |
| Termination | PC Pins, Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -35 °C |
| Voltage Rating (AC) | 24 V |
| Height | 7.3 mm |
| Circuit Type | SPST-NO |
| Packaging | Bulk |
| Depth | 12.36 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Copper |
| Type | Switch |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 24 V |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | Black |
| Illumination Color | Black |
| ELV | Compliant |
| Actuator Length | 5.74 mm |
| Throw Configuration | SPST |
| Number of Positions | 2 |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Illuminated, Non-Illuminated |
| Electrical Life | 100 kcycles |
| Operating Force | 1.6 N |
| Switch Travel | 250 µm |
| Actuator Material | PBT |
| Mechanical Life | 100 kcycles |
| Contact Current Rating | 50 mA |
| Actuator Type | Standard |
| Termination Style | PC Pin |
| Life (Cycles) | 100 kCycles |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Mounting Direction | Right Angle |
Stock: 1177
Distributors
pcbx
pcbxUnit Price$0.21782
Ext.Price$0.21782
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.21782 | $0.21782 |
| 10 | $0.19492 | $1.94920 |
| 50 | $0.17443 | $8.72150 |
| 100 | $0.15958 | $15.95800 |
| 500 | $0.14600 | $73.00000 |
| 1000 | $0.13357 | $133.57000 |
| 3000 | $0.12559 | $376.77000 |
| 5000 | $0.11809 | $590.45000 |
